Product Details
Place of Origin: china
Brand Name: YH
Certification: CE SGS
Model Number: 10
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-15 day
Payment Terms: T/T
Supply Ability: 10000
Main Raw Material: |
POLYURETHANE |
Usage: |
Fiber & Garment, Footwear & Leather, Packing |
Shape: |
Coiled Material |
MOQ: |
100 Square Meter |
Sample Package: |
Paper Box |
Width: |
1-150cm (can Be Customized) |
Product Name: |
TPU Hot Melt Adhesive Film |
Colour: |
Transparent |
Thickness: |
0.4mm (can Be Customized) |
Characteristic: |
Strong Adhesion |
Main Raw Material: |
POLYURETHANE |
Usage: |
Fiber & Garment, Footwear & Leather, Packing |
Shape: |
Coiled Material |
MOQ: |
100 Square Meter |
Sample Package: |
Paper Box |
Width: |
1-150cm (can Be Customized) |
Product Name: |
TPU Hot Melt Adhesive Film |
Colour: |
Transparent |
Thickness: |
0.4mm (can Be Customized) |
Characteristic: |
Strong Adhesion |

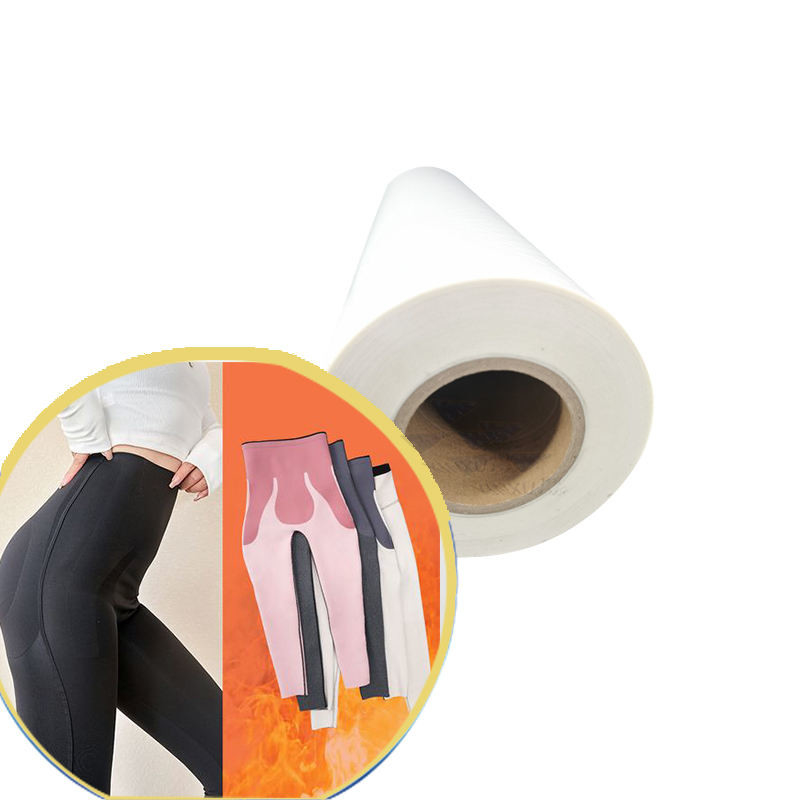

Factory Outlet Jelly Glue Hot Melt Adhesive Film For Barbie Pants
TPU hotmelt adhesive film used for bonding and lamination
We have been devoting ourselves in research and manufacture in hotmelt adhesive film for many years.Now we become mature from raw material purchasing to final consumer usage.
Product parameters of hot melt adhesive film
TPU Hot melt adhesive film | ||||||||||||
Model | MT8805 | MT8902 | MT8405 | MT8704 | MT4 | MT3 | ||||||
Composition | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Elastomer | ||||||
Appearance | Transparent | Transparent | Transparent | Transparent | Milky white | Semi-transparent | ||||||
Gauge① | 25~250μm | 25~250μm | 25~250μm | 25~250μm | 203~280μm | 100~150μm | ||||||
Width② | 4~1520mm | 4~1520mm | 4~1520mm | 4~1520mm | 6~1500mm | 6~1380mm | ||||||
Substrate③ | Release paper | 离型纸Release paper | 离型纸Release paper | 离型纸Release paper | 离型纸Release paper | 离型纸Release paper | ||||||
Hand | Very soft | 柔软Soft | 柔软Soft | 柔软Soft | 适中Medium | 柔软Soft | ||||||
Softening point | 115℃(239℉) | 110℃(230℉) | 105℃(221℉) | 85℃(185℉) | 90℃(194℉) | 90℃(194℉) | ||||||
Wash | ˂ 60℃(140℉) | ˂ 60℃(140℉) | ˂ 50℃(122℉) | ˂ 40℃(104℉) | ˂ 40℃(104℉) | ˂ 40℃(104℉) | ||||||
Low temperature | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ||||||
High temperature | ˂ 100℃(212℉) | ˂95℃(203℉) | ˂90℃(194℉) | ˂75℃(167℉) | ˂75℃(167℉) | ˂75℃(167℉) | ||||||
Bonding strength④ | ˃ 8kgf/25mm | ˃ 8kgf/25mm | ˃ 7kgf/25mm | ˃ 5.5kgf/25mm | ˃ 5kgf/25mm | ˃ 5kgf/25mm | ||||||
Suggested bonding conditions⑤ | 160~180℃(320~356℉) | 150~170℃(302~338℉) | 150~170℃(302~338℉) | 130~150℃(266~302℉) | 140~160℃(284~320℉) | 140~160℃(284~320℉) | ||||||
Bonding material⑥ | Sewfree underwear/shirts/T-shirts/body-shaping clothes/yoga pants, sewfree pockets, waterproof three-layer belts, multifunctional clothing, leather/PVC, mesh, shoe materials, nylon cloth/lycra cloth/elastic fabric etc. |
|||||||||||
Application | Sewfree garment |
Elastic fabric |
Shoe materials |
Electronic protective cover/fire retardant application |
Body-shaping clothes/yoga pants |
Shirts/T-shirts |
Tpu Hot Melt Adhesive Film is a thermoplastic material, for a variety of materials can be applied to the hot melt adhesive, It can repeatedly heated plastic bonding. This kind of hot melt adhesive has good adhesion to textile, polyester, cotton, blended fabric, TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance .
Application case display of hot melt adhesive film
The TPU hot melt adhesive film is turning from the Polyurethane melting hot melt particle that is using the high precision coated head to coat with a thin film, the products look like the double-sided adhesive with a bottom attached to a layer of non-adhesive release paper.
Polyurethane Tpu Hot Melt Adhesive Film
Polyurethane Hot melt adhesive film is not sticky under normal temperature. When heated, it would perform as the double-side adhesive but much more excellent fastness performance.
Here are some features of our hot melt adhesive sheet:
Polyurethane Tpu Hot Melt Adhesive Film for Textile Fabric
The material of Tpu Hot Melt Adhesive Film for Textile Fabric is Polyurethane, it has differnt thickness,such as 0.05mm, 0.08mm, 0.10mm, 0.15mm and 0.18mm, and it has different width which can from 10mm to 1524mm
About Meitie
M&T Hot Melt Adhesive Technology Co., Ltd. is a professional manufacturer of high elasticity&high sticky undergarment customized TPU film, grid film, High and low temperature film, heat transfer film and hot melt adhesive film, we focus on research and developmentthe for hot-melt adhesives film, polymer film and related products or new materials, establish a close working relationship with a number of domestic research institutions, and continue to introduce new products to speed up the upgrading in order to provide our customers with better, more value products. M&T uses imported equipment and imported raw materials for the production, with the leading domestic production technology and detection technology, guarantee the products under a comprehensive quality tracking management, all the products were certified by SGS and complied with EU ROHS.
"M&T" Hot Melt Adhesive Film widely used in underwear manufacturing, functional clothing, electronic products protective cover, uniform manufacturing, apparel decorative materials, shoe materials and automotive manufacturing fields etc., M&T adheres to the "Customer first, Forge Ahead" business philosophy, adhere to the principle with "Quality First, Client Supreme", we insist the high-quality product, preferential prices and fast&timely shipment to obtain the long-term cooperation from customers.
FAQ
Q: Are you factory or a trading company ?
A: We are a factory. We have 10 production lines for hot melt adhesive films and web, including extrusion coating, T-DIE etc.
Q: What’s your main products?
A: Our main products include “HOT MELT ADHESIVE FILM”, “HOT MELT ADHEISVE WEB”, “HOT MELT ADHESIVE POWDER” etc. And adhesive types
includes Co-PA, Co-PES, TPU, PO/EAA, and EVA.
Q: Do you accept OEM or ODM?
A: Yes ,we accept OEM and ODM, we are professional in heat transfer material manufacturer ,accumulated experience in R&D and
manufacturing.
Q: May I have your samples?
A: If you need some sample for your reference, do feel free to let us know your fully address and the courier express account.
Q: What is your payment method?
A: We accept T/T, L/C, Western Union. You can also pay through Alibaba Trade Assurance.
Q: How long is the delivery time?
A: For sample 1-3 days
For bulk order 7-10 days (depends on order quantity)
Q: What is hot melt adhesive film?
A: The structure is two layers including hot melt adhesive film and release paper. The adhesive film is solid in room temperature
and would be melt and activated adhesion when you heat it. You can bond many substrates such as cloth, leather, mesh, metal, wood,
plastic etc. Hot melt adhesive film are widely used in applications of shoes, garment, automobile, household, furniture, hardware
tools, underwear & socks and so on.
