Product Details
Place of Origin: china
Brand Name: YH
Certification: CE SGS
Model Number: 10
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-15 day
Payment Terms: T/T
Supply Ability: 10000
Length: |
100 Yards / Roll |
Other Names: |
Thermoplastic Polyurethane Tpu Hotmelt Adhesive Film |
Color: |
Transparent |
Product Name: |
Thickness 0.10mm Thermoplastic Polyamide PA Hot Melt Adhesive Film Glue For Textile Fabric Garments |
Composition: |
Polyester |
Keywords: |
Hot Melt Glue Film, Hot Melt Glue Sheets |
Desity: |
1.15±0.02g/cm³ |
Release Liner: |
Glassine Release Paper |
Length: |
100 Yards / Roll |
Other Names: |
Thermoplastic Polyurethane Tpu Hotmelt Adhesive Film |
Color: |
Transparent |
Product Name: |
Thickness 0.10mm Thermoplastic Polyamide PA Hot Melt Adhesive Film Glue For Textile Fabric Garments |
Composition: |
Polyester |
Keywords: |
Hot Melt Glue Film, Hot Melt Glue Sheets |
Desity: |
1.15±0.02g/cm³ |
Release Liner: |
Glassine Release Paper |

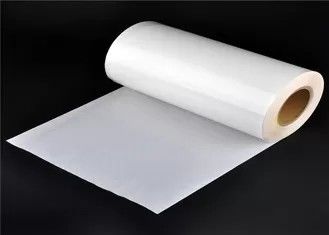

Hot Melt Polyurethane Tpu Adhesive Glue Film For Laminating Fabric
The product is composed of two layers of film: first side is transparent adhesive film, the second side is release paper.
Melting point: approx. 150 degree centigrade
Applicable machines: Any planar heat pressing machine or Hot-Air Welding Machines.
It is activated by heat, used to bond two different/same fabric materials tightly together if with proper adhesion temperature.
(Nylon, polyester, blends, cotton, leather, Vinyl, polyester, cotton, and polyethylene fabric etc.)
Suitable for embroider badge, leather products, bonding on clothing.
Physical performance and using suggestion:
| Appearance : | No color semi-transparent film | solubility: | Insoluble in water | |
| Melt index: | 10.5±2g/10min;160℃ | Melt point: | 78-140℃ | |
| Grame weight: | 12.0g/m2/0.01mm | Washing resistance: | good | |
| Strip temperature: | <-30℃ | Lamination strength: | >2kgf/cm | |
| High temperature resistance: | ≤0mm (HGT2815-1996 90℃ 182g) | |||
| Alkali resistance: | ≥2kgf/cm (10%NaOH solution 24h) | |||
| Hydrolysis resistance: | ≥2kgf/cm (70℃,95%RH 24h) | |||
| Yellowing resistance: | 4 level (HGT3689-2011 A method 24h) | |||
| Suggestion operation condition: | Hot Press machine | 0.4~0.6Mpa,170~180℃, 25~46s | ||
| Bonding machine | 0.4~0.6Mpa,160~165℃, speed 2-3 | |||
| Folding Machine | 0.4~0.6Mpa,160~165℃, speed 2-3 | |||
Application
Home Textiles
Curtain, table cloth, mattress, etc..
Heat Transfer Printing
Flocking, gilding and pyrography
Electronic Products
Low pressure injection molding products
Interlining
Strong bonding strength, stable performance, resistance washing and dry cleaning. Choice for double dot, paste dot, powder dot.
Automobile Industry
Roof lining, seat, heat insulating system, sound pannel, air filter, sofa cushion, carpet etc..
Filter Material
Air filtration process, fuel filtration system, lamination, active carbon nonwoven, paper, etc..
Art Jewelry
Have a good strength for bonding metal, glass, organic material, plain film and aluminium covers a wide range of application
Shoes Industry
Front upper adhesive, shoes cloth stereotypes, shoes compound, back upper adhesive
Other Industries
Women`s underware, reflective material, conductive cloth, forming cloth, wall cloth, embroidery badges, woven labels etc...
FAQ
1, Q: How will you pack the product?
A: We pack with paper cartons, usually 4 or 6 rolls per carton for hand stretch film; 1 roll for machine stretch film; 56 or 84 rolls for mini stretch film and 27 rolls per pallet for jumbo stretch film.
2, Q: How many rolls can be full fitted into one container, such as 20FT, 40FT?
A: The details are in the above forms. If your specification is different, you need to tell us the size of the carton, and then we will calculate for you accordingly.
3, Q: How about the adhesive of the stretch film?
A: It is self adhesive stretch film. We can produce one side and two sides adhesive but usually one side adhesive. Besides, the stickiness can be controlled as customized.
4, Q: How many layers of the stretch film can your equipment make?
A: Our equipment can produce 1/2/3 layers stretch film.
5, Q: Do you accept OEM?
A: Yes, we do.
6, Q: Do you provide free sample? And how many days it will take?
A: Yes, we provide free sample, only need you to pay the courier charge. We will make the sample within 3 working days and it will take 3-7days on the transportation.
