Product Details
Place of Origin: china
Brand Name: YH
Certification: CE SGS
Model Number: 10
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-15 day
Payment Terms: T/T
Supply Ability: 10000
Usage: |
Fabric |
Feature: |
Strong Adhesion And Low Price |
Main Raw Material: |
EAA |
Cas No.: |
Environmental Friendly,ECO Friendly |
Product Name: |
PO Hot Melt Adhesive Film For Textile Fabrics |
Appearance: |
PA Hot Melt Adhesive Film |
Keywords: |
Transparent PO Hot Melt Adhesive Sheets |
Normal Width: |
6mm-860mm |
Release Liner: |
Glassine Release Paper |
Washing Resistant Time:: |
60°C/72H |
Usage: |
Fabric |
Feature: |
Strong Adhesion And Low Price |
Main Raw Material: |
EAA |
Cas No.: |
Environmental Friendly,ECO Friendly |
Product Name: |
PO Hot Melt Adhesive Film For Textile Fabrics |
Appearance: |
PA Hot Melt Adhesive Film |
Keywords: |
Transparent PO Hot Melt Adhesive Sheets |
Normal Width: |
6mm-860mm |
Release Liner: |
Glassine Release Paper |
Washing Resistant Time:: |
60°C/72H |

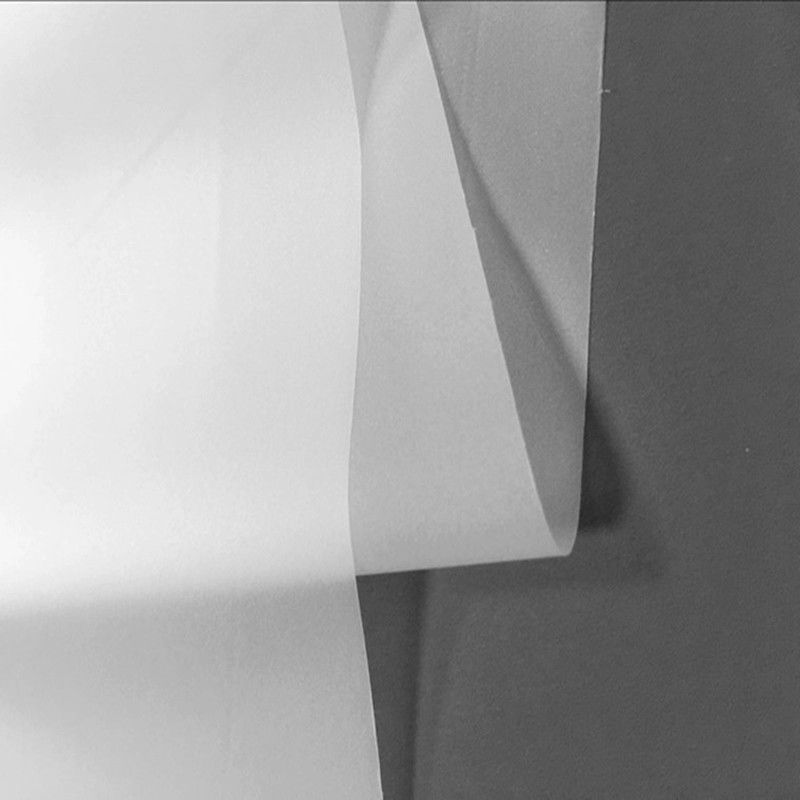

Transparent PO Hot Melt Adhesive Sheets 48 / 96cm Wide Low Temperature Film
PO Hot Melt Adhesive Film Description:
This product is a thermoplastic adhesive product , suitable for wide range of adherend . It can be repeatedly heated for bonding. It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
PO Hot Melt Adhesive Film Applications:
Development direction and application of DS019300M is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix, iron logo and crafts.
PO Hot Melt Adhesive Film Composition:
Ethylene acrylic acid copolymer
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 140℃-180℃ | Mechanical Mold Temperature | 150℃-190℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
| Color | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 0.98±0.02g/cm³ | Conventional Thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
| Melting Range | 80-110℃ (Tunsing DSC 214) | Width Range | 5mm-1480mm |
| Liquidity Index | 60-95g/10min (ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280,1480mm |
| Activation Temperature | 123-160℃ (Tunsing) | Conventional Length | 100 yards |
| Washing Resistance | 40℃ | Finished Product | 500mm*100yards/roll |
Packing & Shipping:
Packing: 100m in roll, one rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
FAQ
Q1) .How do I learn about hot melt adhesive film and heat transfer vinyl ?
(1) For the hot melt adhesive film which is adhesive film with release paper. The film is solid in room temperature and it would melt when heated to get its melt point,it is used to bond many materials, Different materials of hot melt adhesive film get different performances and different usages.
(2) For the heat transfer vinyl shich is made from PU materials with high eco-friendly performance. The vinyl is easily cutting, easily weeding, easily transfer to fabric and strong adhere to the fabric which could be durable long time.Very popular for DIY designs.
We shall learn about your demands,and recommend you with suitable products.
Q2) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q3).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know,
Q4).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q5). Do you provide sample? And how many days it will take?
If you need some sample for your reference,do feel free to let us know your fully address/ship
Q6). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q7). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
