Product Details
Place of Origin: china
Brand Name: YH
Certification: CE SGS
Model Number: 10
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-15 day
Payment Terms: T/T
Supply Ability: 10000
Feature: |
Strong Adhesion And Low Price |
Other Names: |
Polyamaide Hot Melt Adhesive Film |
Product Name: |
PO Hot Melt Adhesive Film For Textile Fabrics |
Appearance: |
PA Hot Melt Adhesive Film |
Keywords: |
Transparent Hot Melt Adhesive Film |
Operating Temperature: |
130°C -160°C |
Normal Width: |
6mm-860mm |
Normal Thickness: |
0.17mm |
Washing Resistant Time:: |
60°C/72H |
Feature: |
Strong Adhesion And Low Price |
Other Names: |
Polyamaide Hot Melt Adhesive Film |
Product Name: |
PO Hot Melt Adhesive Film For Textile Fabrics |
Appearance: |
PA Hot Melt Adhesive Film |
Keywords: |
Transparent Hot Melt Adhesive Film |
Operating Temperature: |
130°C -160°C |
Normal Width: |
6mm-860mm |
Normal Thickness: |
0.17mm |
Washing Resistant Time:: |
60°C/72H |

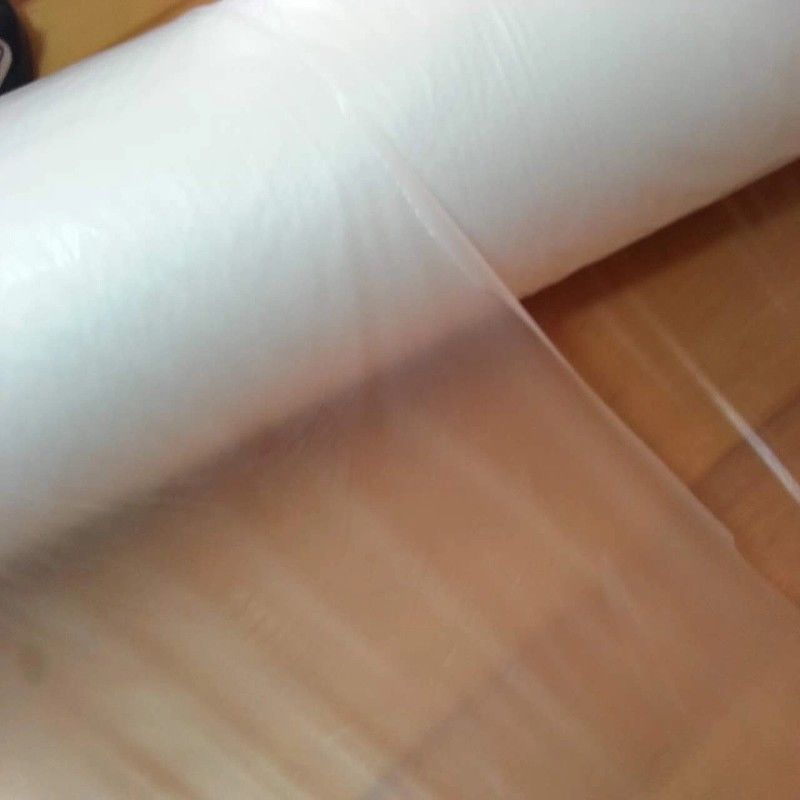

High Adhesion For Fabric Patches Bonding 0.08mm PO Hot Melt Adhesive Film
Hot melt adhesives produced in film form with back paper or without back paper. It can be convenient to either continuous or intermittent processes. It can be widely used for bonding fabrics, paper, polymer material and metal.
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 140℃-180℃ | Mechanical Mold Temperature | 150℃-190℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
| Color | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 0.98±0.02g/cm³ | Conventional Thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
| Melting Range | 80-110℃ (Tunsing DSC 214) | Width Range | 5mm-1480mm |
| Liquidity Index | 60-95g/10min (ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280,1480mm |
| Activation Temperature | 123-160℃ (Tunsing) | Conventional Length | 100 yards |
| Washing Resistance | 40℃ | Finished Product | 500mm*100yards/roll |
Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
FAQ
Q1) . How do I learn about hot melt adhesive film and heat transfer vinyl ?
(1) For the hot melt adhesive film which is adhesive film with release paper. The film is solid in room temperature and it would melt when heated to get its melt point,it is used to bond many materials, Different materials of hot melt adhesive film get different performances and different usages.
(2) For the heat transfer vinyl shich is made from PU materials with high eco-friendly performance. The vinyl is easily cutting, easily weeding, easily transfer to fabric and strong adhere to the fabric which could be durable long time.Very popular for DIY designs.
We shall learn about your demands,and recommend you with suitable products.
Q2) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q3).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know,
Q4). How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q5). Do you provide sample? And how many days it will take?
If you need some sample for your reference,do feel free to let us know your fully address/ship
Q6). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q7). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
