Home > products > Hot Melt Adhesive Films > Hot Melt 480mm Adhesive Protective Film Thermoplastic Polyurethane Film Transparent

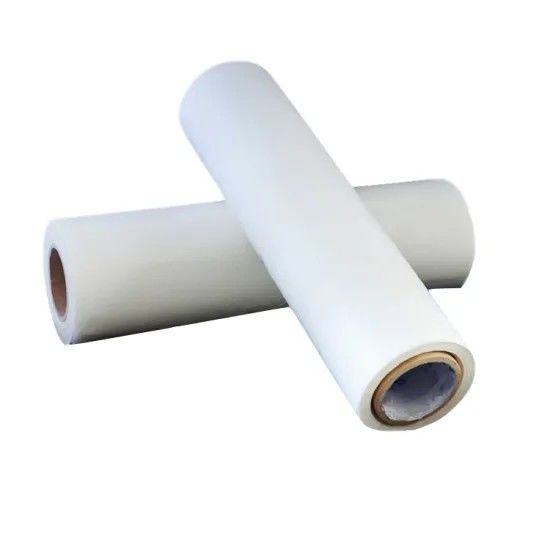

Hot Melt 480mm Adhesive Protective Film Thermoplastic Polyurethane Film Transparent

Product Details

Place of Origin: china

Brand Name: YH

Certification: CE SGS

Model Number: 10

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: carton

Delivery Time: 5-15 day

Payment Terms: T/T

Supply Ability: 10000

Get Best Price
High Light:

480mm Adhesive Protective Film

,

1000mm Thermoplastic Polyurethane Film

,

1380mm Adhesive Protective Film

Length:
100 Yards / Roll
Cas No.:
Environmental Friendly,ECO Friendly
Conventional Width:
480mm,1000mm,1380mm,1480mm
Keywords:
TPU Adhesive Film
Operating Temperature:
130°C -160°C
Normal Thickness:
0.17mm
Washing Resistant Time::
60°C/72H
Package:
Roll Packing
Length:
100 Yards / Roll
Cas No.:
Environmental Friendly,ECO Friendly
Conventional Width:
480mm,1000mm,1380mm,1480mm
Keywords:
TPU Adhesive Film
Operating Temperature:
130°C -160°C
Normal Thickness:
0.17mm
Washing Resistant Time::
60°C/72H
Package:
Roll Packing
Hot Melt 480mm Adhesive Protective Film Thermoplastic Polyurethane Film Transparent

Adhesive Protective Film Thermoplastic Polyurethane Hot Melt Adhesive Film Transparent TPU Film



Note: The technical information and data, recommendations and other statements provided are based on tests and experience that we think are reliable, but the accuracy or completeness of such information is not guaranteed. We suggest you to evaluate this products and determine whether it is suitable to your application before using it.



Physical performance and using suggestion:



Appearance : No color semi-transparent film solubility: Insoluble in water
Melt index: 10.5±2g/10min;160 Melt point: 78-140
Grame weight: 12.0g/m2/0.01mm Washing resistance: good
Strip temperature: <-30 Lamination strength: >2kgf/cm
High temperature resistance: ≤0mm (HGT2815-1996 90 182g)
Alkali resistance: ≥2kgf/cm (10%NaOH solution 24h)
Hydrolysis resistance: ≥2kgf/cm (70,95%RH 24h)
Yellowing resistance: 4 level (HGT3689-2011 A method 24h)
Suggestion operation condition: Hot Press machine 0.4~0.6Mpa,170~180, 25~46s
Bonding machine 0.4~0.6Mpa,160~165, speed 2-3
Folding Machine

0.4~0.6Mpa,160~165, speed 2-3



Application

Home Textiles

Curtain, table cloth, mattress, etc..

Heat Transfer Printing

Flocking, gilding and pyrography

Electronic Products

Low pressure injection molding products

Interlining

Strong bonding strength, stable performance, resistance washing and dry cleaning. Choice for double dot, paste dot, powder dot.

Automobile Industry

Roof lining, seat, heat insulating system, sound pannel, air filter, sofa cushion, carpet etc..

Filter Material

Air filtration process, fuel filtration system, lamination, active carbon nonwoven, paper, etc..

Art Jewelry

Have a good strength for bonding metal, glass, organic material, plain film and aluminium covers a wide range of application

Shoes Industry

Front upper adhesive, shoes cloth stereotypes, shoes compound, back upper adhesive

Other Industries

Women`s underware, reflective material, conductive cloth, forming cloth, wall cloth, embroidery badges, woven labels etc...




FAQ

Q1) .How do I learn about hot melt adhesive film and heat transfer vinyl ?
(1) For the hot melt adhesive film which is adhesive film with release paper. The film is solid in room temperature and it would melt when heated to get its melt point,it is used to bond many materials, Different materials of hot melt adhesive film get different performances and different usages.
(2) For the heat transfer vinyl shich is made from PU materials with high eco-friendly performance. The vinyl is easily cutting, easily weeding, easily transfer to fabric and strong adhere to the fabric which could be durable long time.Very popular for DIY designs.
We shall learn about your demands,and recommend you with suitable products.
Q2) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q3).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know,
Q4).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q5). Do you provide sample? And how many days it will take?
If you need some sample for your reference,do feel free to let us know your fully address/ship
Q6). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q7). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.

Hot Melt 480mm Adhesive Protective Film Thermoplastic Polyurethane Film Transparent 0
