Product Details
Place of Origin: china
Brand Name: YH
Certification: CE SGS
Model Number: 10
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-15 day
Payment Terms: T/T
Supply Ability: 10000
Melt Point: |
75-80℃ |
Cas No.: |
Environmental Friendly,ECO Friendly |
Color: |
White Mist Translucent |
Product Name: |
Tpu Film Transparent Similar Bemis Adhesive Glue For Sport ShoesMelt Adhesive Film |
Keywords: |
Plastic Adhesive Glue Film |
Hardness: |
82±2 Shore A |
Reology Temperature: |
90°C -100°C |
Normal Thickness: |
0.10mm, 0.12mm, 0.15mm |
Melt Point: |
75-80℃ |
Cas No.: |
Environmental Friendly,ECO Friendly |
Color: |
White Mist Translucent |
Product Name: |
Tpu Film Transparent Similar Bemis Adhesive Glue For Sport ShoesMelt Adhesive Film |
Keywords: |
Plastic Adhesive Glue Film |
Hardness: |
82±2 Shore A |
Reology Temperature: |
90°C -100°C |
Normal Thickness: |
0.10mm, 0.12mm, 0.15mm |

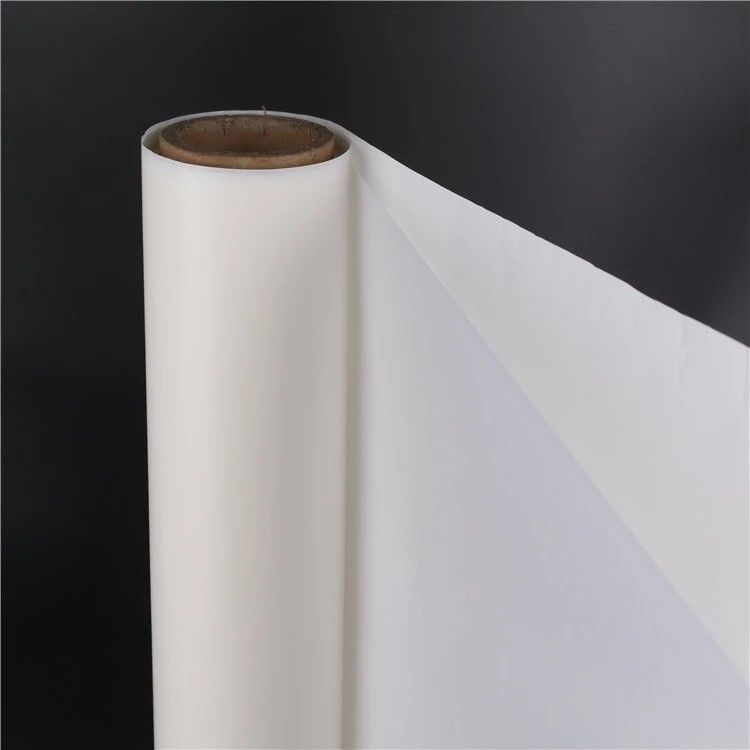

Transparent tpu film lamination Similar Bemis Adhesive Film For Sport Shoes
Our company is a one of can produce high polymer adhesive film in china. Our high polymer adhesive films are all made of the materials imported from American, and the produce techniques we use are from Taiwan. The high polymer adhesive film is suitable for the adhering of woods/plastic and many kinds of metal materials, such as aluminum/steel and etc., the adhesive intensity is extremely high. The film is widely used in the producing of aluminum plastic composite panel/composite ceiling and fireproof panel. Our high polymer adhesive films have been exporting to Europe/Southeast Asia and so on ,well received by domestic and international customer.
Physical performance and using suggestion:
| Color | transparent | Release liner | Glassine release paper |
| Density | 1.18±0.02g/cm3 | Thickness | 0.0125mm-1mm |
| Opening Time | 10min | Width | 5mm-1500mm |
| Hardness | 82±2 Shore A | Conventional thickness | 0.08mm,0.1mm,0.15mm |
| Melt Flow Index |
5±1g/10min; Condition:ASTMD1238-04 |
Conventional Width | 1380mm |
Temperature |
112°C | Length | 100 yards |
|
Operating temperature
|
130°C -160°C | Finished products specification | 1380mm*100yards/roll |
Recommended Bonding Conditions:
| Flat Press | Second Flat Press |
| Machine Setting: 120℃-140℃ | Machine Setting: 130℃-160℃ |
| Dwell Time: 5-15 seconds | Dwell Time: 8-25seconds |
| Pressure: 0.3-0.6mpa |
Pressure: 0.3-0.6mpa |
Application
Home Textiles
Curtain, table cloth, mattress, etc..
Heat Transfer Printing
Flocking, gilding and pyrography
Electronic Products
Low pressure injection molding products
Interlining
Strong bonding strength, stable performance, resistance washing and dry cleaning. Choice for double dot, paste dot, powder dot.
Automobile Industry
Roof lining, seat, heat insulating system, sound pannel, air filter, sofa cushion, carpet etc..
Filter Material
Air filtration process, fuel filtration system, lamination, active carbon nonwoven, paper, etc..
Art Jewelry
Have a good strength for bonding metal, glass, organic material, plain film and aluminium covers a wide range of application
Shoes Industry
Front upper adhesive, shoes cloth stereotypes, shoes compound, back upper adhesive
Other Industries
Women`s underware, reflective material, conductive cloth, forming cloth, wall cloth, embroidery badges, woven labels etc...
FAQ
1, Q: How will you pack the product?
A: We pack with paper cartons, usually 4 or 6 rolls per carton for hand stretch film; 1 roll for machine stretch film; 56 or 84 rolls for mini stretch film and 27 rolls per pallet for jumbo stretch film.
2, Q: How many rolls can be full fitted into one container, such as 20FT, 40FT?
A: The details are in the above forms. If your specification is different, you need to tell us the size of the carton, and then we will calculate for you accordingly.
3, Q: How about the adhesive of the stretch film?
A: It is self adhesive stretch film. We can produce one side and two sides adhesive but usually one side adhesive. Besides, the stickiness can be controlled as customized.
4, Q: How many layers of the stretch film can your equipment make?
A: Our equipment can produce 1/2/3 layers stretch film.
5, Q: Do you accept OEM?
A: Yes, we do.
6, Q: Do you provide free sample? And how many days it will take?
A: Yes, we provide free sample, only need you to pay the courier charge. We will make the sample within 3 working days and it will take 3-7days on the transportation.
