Product Details
Place of Origin: china
Brand Name: YH
Certification: CE SGS
Model Number: 10
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-15 day
Payment Terms: T/T
Supply Ability: 10000
Length: |
100 Yards / Roll |
Cas No.: |
Environmental Friendly,ECO Friendly |
Conventional Width: |
480mm,1000mm,1380mm,1480mm |
Keywords: |
TPU Adhesive Film |
Operating Temperature: |
130°C -160°C |
Normal Thickness: |
0.17mm |
Washing Resistant Time:: |
60°C/72H |
Package: |
Roll Packing |
Composition: |
Polyurethane |
Model: |
MT8805 |
Softening Point: |
115℃(239℉) |
Length: |
100 Yards / Roll |
Cas No.: |
Environmental Friendly,ECO Friendly |
Conventional Width: |
480mm,1000mm,1380mm,1480mm |
Keywords: |
TPU Adhesive Film |
Operating Temperature: |
130°C -160°C |
Normal Thickness: |
0.17mm |
Washing Resistant Time:: |
60°C/72H |
Package: |
Roll Packing |
Composition: |
Polyurethane |
Model: |
MT8805 |
Softening Point: |
115℃(239℉) |

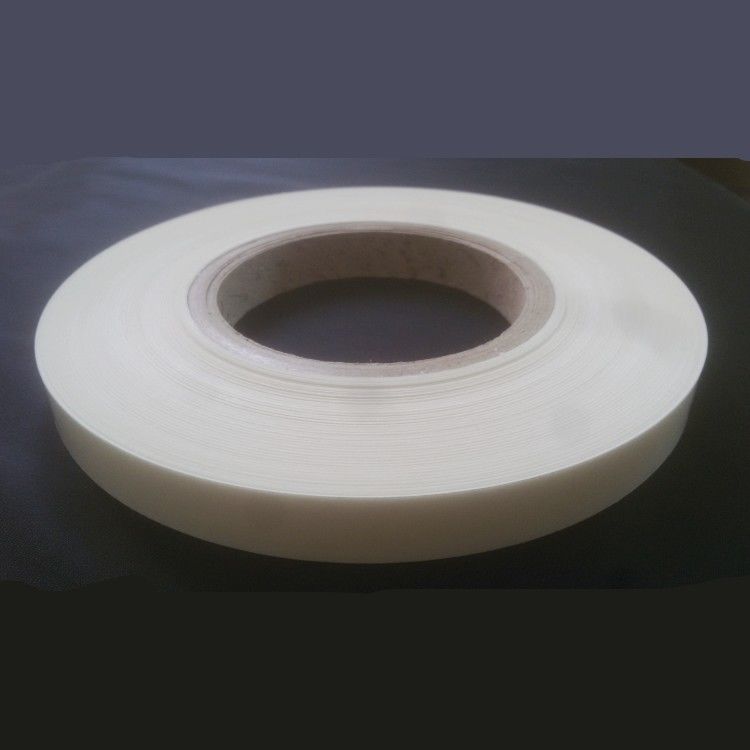

Shirts/T-Shirts/Polo Shirts/Baby Clothes Traceless Hot Melt Adhesive Film
Sewfree underwear/shirts/T-shirts/body-shaping clothes/yoga pants, sewfree pockets, waterproof three-layer belts, multifunctional clothing, elastic fabric etc.
Hot melt adhesive film Description
This product DS019YKL-4 is a self-adhesive hot melt film. Double layer structure: the first layer is hot melt adhesive (no viscosity under normal temperature, need to be heated), and the other layer is acrylic acid pressure sensitive adhesive (in normal temperature, there is self-adhesive energy and the entrusted off-type paper).Self-adhesive level can be no less than 150 degree temperature, not lose the glue, and also can be paste repeatedly, in line with the European demand index.
Physical performance and using suggestion:
Appearance : | No color semi-transparent film | solubility: | Insoluble in water | |
Melt index: | 10.5±2g/10min;160℃ | Melt point: | 78-140℃ | |
Grame weight: | 12.0g/m2/0.01mm | Washing resistance: | good | |
Strip temperature: | <-30℃ | Lamination strength: | >2kgf/cm | |
High temperature resistance: | ≤0mm (HGT2815-1996 90℃ 182g) | |||
Bonding material | Sewfree underwear/shirts/T-shirts/body-shaping clothes/yoga pants, sewfree pockets, waterproof three-layer belts, multifunctional clothing, elastic fabric etc. | |||
Hydrolysis resistance: | ≥2kgf/cm (70℃,95%RH 24h) | |||
Yellowing resistance: | 4 level (HGT3689-2011 A method 24h) | |||
Suggestion operation condition: | Hot Press machine | 0.4~0.6Mpa,170~180℃, 25~46s | ||
Bonding machine | 0.4~0.6Mpa,160~165℃, speed 2-3 | |||
Folding Machine |
0.4~0.6Mpa,160~165℃, speed 2-3 |
Features of Hot Melt Adhesive Film
1: Wrinkle-free suture
2: Soft and light
3: Increased flexibility
4: Washable
5: Reduce skin friction
6: Smooth body contours
Application
Home Textiles
Curtain, table cloth, mattress, etc..
Heat Transfer Printing
Flocking, gilding and pyrography
Electronic Products
Low pressure injection molding products
Interlining
Strong bonding strength, stable performance, resistance washing and dry cleaning. Choice for double dot, paste dot, powder dot.
Automobile Industry
Roof lining, seat, heat insulating system, sound pannel, air filter, sofa cushion, carpet etc..
Filter Material
Air filtration process, fuel filtration system, lamination, active carbon nonwoven, paper, etc..
Art Jewelry
Have a good strength for bonding metal, glass, organic material, plain film and aluminium covers a wide range of application
Shoes Industry
Front upper adhesive, shoes cloth stereotypes, shoes compound, back upper adhesive
Other Industries
Women`s underware, reflective material, conductive cloth, forming cloth, wall cloth, embroidery badges, woven labels etc...
FAQ
Q1) .How do I learn about hot melt adhesive film and heat transfer vinyl ? (1) For the hot melt adhesive film which is adhesive film with release paper. The film is solid in room temperature and it would melt when heated to get its melt point,it is used to bond many materials, Different materials of hot melt adhesive film get different performances and different usages.
(2) For the heat transfer vinyl shich is made from PU materials with high eco-friendly performance. The vinyl is easily cutting, easily weeding, easily transfer to fabric and strong adhere to the fabric which could be durable long time.Very popular for DIY designs.
We shall learn about your demands,and recommend you with suitable products. Q2) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products, Q3).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know, Q4).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc, Q5). Do you provide sample? And how many days it will take?
If you need some sample for your reference,do feel free to let us know your fully address/ship Q6). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity), Q7). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
