Product Details
Place of Origin: china
Brand Name: MT
Certification: CE SGS
Model Number: 10
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-15 day
Payment Terms: T/T
Supply Ability: 10000
Length: |
100 Yards / Roll |
Appearance: |
Transparent |
Conventional Width: |
480mm,1000mm,1380mm,1480mm |
Keywords: |
TPU Adhesive Film |
Operating Temperature: |
130°C -160°C |
Main Raw Material: |
PA Hot Melt Adhesive Film |
Model: |
MT2008 |
Composition: |
Polyamide |
Gauge: |
80~150μm |
Width: |
4~1380mm |
Substrate: |
Release Paper |
Hand: |
Medium |
Softening Point: |
110℃(230℉) |
Wash: |
˂ 60℃(140℉) |
Length: |
100 Yards / Roll |
Appearance: |
Transparent |
Conventional Width: |
480mm,1000mm,1380mm,1480mm |
Keywords: |
TPU Adhesive Film |
Operating Temperature: |
130°C -160°C |
Main Raw Material: |
PA Hot Melt Adhesive Film |
Model: |
MT2008 |
Composition: |
Polyamide |
Gauge: |
80~150μm |
Width: |
4~1380mm |
Substrate: |
Release Paper |
Hand: |
Medium |
Softening Point: |
110℃(230℉) |
Wash: |
˂ 60℃(140℉) |

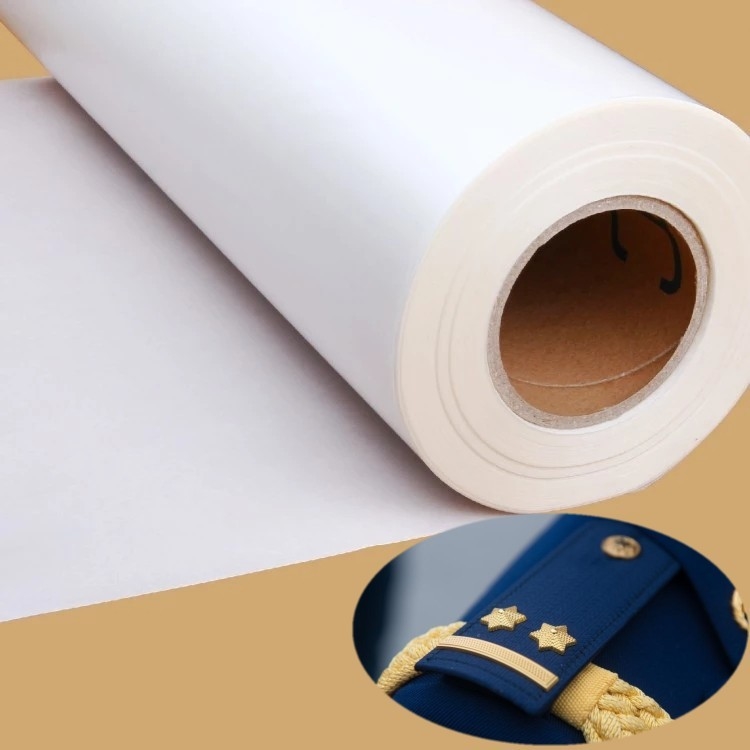

PA Hot Melt Adhesive Film Is Suitable For Garment Epaulets And Armbands
Basic parameters of hot melt adhesive film
Common thickness 50μm, 75μm, 100μm, 125μm, 150μm, special specifications can be customized
The width of the conventional whole roll is 48cm, 50cm, 96cm, 138cm, 150cm, 152cm, special specifications can be customized, and small specifications can be cut roll by roll;
Application of hot melt adhesive film for sewfree garment
"M&T" sewfree film products make soft feeling, wear-resistant, washable, rub-resistant, and mold-resistant. They have excellent low-temperature flexibility and tensile strength, as well as excellent adhesion, which makes better adhesive, it has an unmatched sewfree fit performance.
Physical performance and using suggestion:
Hot melt adhesive film | ||||||||
Model | MT2008 | MT2012 | MT2015 | MTW20 | ||||
Composition | Polyamide | Polyamide | Polyamide | Polyamide | ||||
Appearance | Transparent | Transparent | Transparent | Web | ||||
Gauge① | 80~150μm | 80~150μm | 80~150μm | 20~50μm | ||||
Width② | 4~1380mm | 4~1380mm | 4~1380mm | 1500mm | ||||
Substrate③ | Release paper | Release paper | Release paper | N/A | ||||
Hand | Medium | Medium | Medium | Very soft | ||||
Softening point | 110℃(230℉) | 110℃(230℉) | 110℃(230℉) | 110℃(230℉) | ||||
Wash | ˂ 60℃(140℉) | ˂ 60℃(140℉) | ˂ 60℃(140℉) | ˂ 60℃(140℉) | ||||
Low temperature | ˃ -20℃(-4℉) | ˃ -20℃(-4℉) | ˃ -20℃(-4℉) | ˃ -20℃(-4℉) | ||||
High temperature | ˂80℃(176℉) | ˂80℃(176℉) | ˂80℃(176℉) | ˂80℃(176℉) | ||||
Bonding strength④ | ˃ 5kgf/25mm | ˃ 5kgf/25mm | ˃ 5kgf/25mm | ˃ 3kgf/25mm | ||||
件Suggested bonding conditions⑤ | 130~150℃(266~302℉) | 130~150℃(266~302℉) | 130~150℃(266~302℉) | 130~150℃(266~302℉) | ||||
Bonding material⑥ | Leather/fabric/plastic/metal, embroidered badges, trademark adhesive etc. |
|||||||
Application | Garment accessories |
Embroidered badges |
Trademark adhesive |
Textiles |
Hot melt adhesive film
Low-temperature, high-elasticity and high-viscosity hot-melt adhesive film is used on the clothing, which can bring out the beauty and fit of the appearance, and further improve the smoothness of the wear on the body and the superior performance with long elasticity. It combines health, comfort, thoughtfulness and fashion in one. . "M&T" sewfree film is a very soft and elastic hot-melt film with soft touch, good washing resistance, good resilience, high reduction rate and high adhesion strength. The application has the following advantages:
Application
Home Textiles
Curtain, table cloth, mattress, etc..
Heat Transfer Printing
Flocking, gilding and pyrography
Electronic Products
Low pressure injection molding products
Interlining
Strong bonding strength, stable performance, resistance washing and dry cleaning. Choice for double dot, paste dot, powder dot.
Automobile Industry
Roof lining, seat, heat insulating system, sound pannel, air filter, sofa cushion, carpet etc..
Filter Material
Air filtration process, fuel filtration system, lamination, active carbon nonwoven, paper, etc..
Art Jewelry
Have a good strength for bonding metal, glass, organic material, plain film and aluminium covers a wide range of application
Shoes Industry
Front upper adhesive, shoes cloth stereotypes, shoes compound, back upper adhesive
Other Industries
Women`s underware, reflective material, conductive cloth, forming cloth, wall cloth, embroidery badges, woven labels etc...
FAQ
Q1: How can I get your sample?
A1: You will get our free sample with technical data sheet.
Q2: Can you do OEM/ODM?
A2: Yes, your requirement for OEM or ODM is welcomed and can be satisfied.
Q3: How long is your lead time?
A3: Samples: 1 - 2 days
Available Stock: 1 - 2 days
LCL: 7 - 10 days
FCL: 10 - 15 days
Q4: What is your payment terms?
A4: Your payment via T/T, L/C, D/A, D/P or Western Union is acceptable.
Q5: How's your quality control process?
A5: Your ordered goods will go through: our Internal and External Quality Control
> Internal quality control: Sample of your goods will be tested by our lab on it’s bond-strength, shrinkage, dry cleaning and
washing features to ensure it complies with industrial standards.
> External quality control: Besides that your ordered goods will go through our factory quality control, still some goods will be
randomly chosen to be inspected so to ensure their weight, width, color, hand-feeling and roll put up to be same as sample
confirmed, also the package same as you required.
