Home > products > Hot Melt Adhesive Films > EVA Hot Melt Adhesive Film For Weaving Mark / Trademark / Embroidery Badge

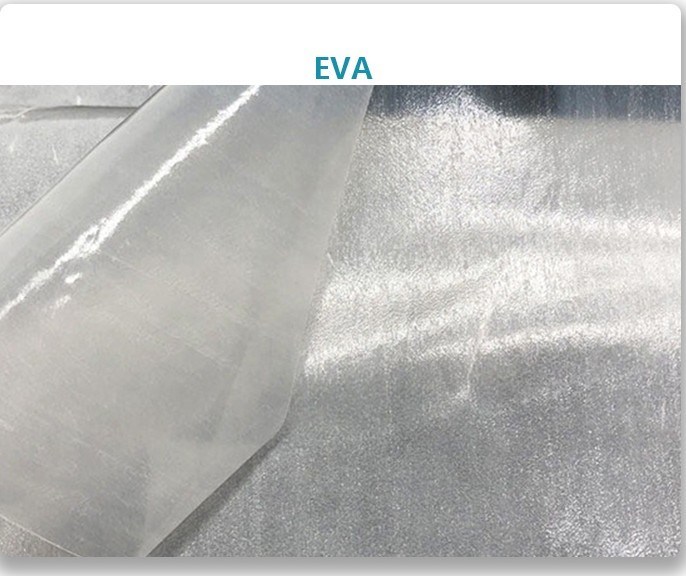

EVA Hot Melt Adhesive Film For Weaving Mark / Trademark / Embroidery Badge

Product Details

Place of Origin: china

Brand Name: MT

Certification: CE SGS

Model Number: 10

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: carton

Delivery Time: 5-15 day

Payment Terms: T/T

Supply Ability: 10000

Get Best Price
High Light:

Weaving Mark Hot Melt Adhesive Film

,

Hot Melt Adhesive Film For Trademark

,

Weaving Mark Hot Melt Glue Film

Length:
100 Yards / Roll
Appearance:
Milky White
Conventional Width:
480mm,1000mm,1380mm,1480mm
Wash:
Excellent Up To 50℃
Melt Flow Index:
5g/10mins Condition:190℃/2.16Kg Load
Material:
EVA
Classification:
Hot Melt Adhesives
Usage:
Fiber & Garment, Footwear & Leather, Woodworking
Model Number:
DS3902
Width(mm):
1120mm-1500mm
Hot Pressing Temperature(°C):
110℃-120℃
Certificate:
ROHS\REACH
Key Word:
Hot Melt Adhesive Film Without Release Paper
Length(yd):
250m-500m
Thickness(mm):
0.015mm-0.15mm
Melting Range:
60-75℃ (Tunsing DSC 214)
Length:
100 Yards / Roll
Appearance:
Milky White
Conventional Width:
480mm,1000mm,1380mm,1480mm
Wash:
Excellent Up To 50℃
Melt Flow Index:
5g/10mins Condition:190℃/2.16Kg Load
Material:
EVA
Classification:
Hot Melt Adhesives
Usage:
Fiber & Garment, Footwear & Leather, Woodworking
Model Number:
DS3902
Width(mm):
1120mm-1500mm
Hot Pressing Temperature(°C):
110℃-120℃
Certificate:
ROHS\REACH
Key Word:
Hot Melt Adhesive Film Without Release Paper
Length(yd):
250m-500m
Thickness(mm):
0.015mm-0.15mm
Melting Range:
60-75℃ (Tunsing DSC 214)
EVA Hot Melt Adhesive Film For Weaving Mark / Trademark / Embroidery Badge



Self Adhesive EVA Hot Melt Adhesive Film Is Used For Weaving Marks Or Trademark Embroidery Badges





Characteristics of hot melt adhesive film



Common thickness 50μm, 75μm, 100μm, 125μm, 150μm, special specifications can be customized;

The width of the conventional whole roll is 48cm, 50cm, 96cm, 138cm, 150cm, 152cm, special specifications can be customized, and small specifications can be cut roll by roll;

The substrate is a commonly recommended specification, the substrate can be replaced according to customer requirements, and some products can produce substrate-free film;

Bonding strength is 100μm thick film, using flat ironing machine and ordinary cotton cloth at normal room temperature, the test data will be different due to different materials and processes;

The bonding conditions can be adjusted appropriately according to the customer's tools, different materials, thickness and processing conditions;

The bonding material may be affected by factors such as material formulation and surface treatment, and may cause poor bonding during use. Special materials can be adjusted in combination with the actual process.

Attention: The test data in the table are obtained under specific conditions and are for reference only. The user is responsible for judging the usability according to the application requirements.



Lead Time:
Quantity(Yards) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 3 7 10 To be negotiated

Application of hot melt adhesive film for sewfree garment



"M&T" sewfree film products make soft feeling, wear-resistant, washable, rub-resistant, and mold-resistant. They have excellent low-temperature flexibility and tensile strength, as well as excellent adhesion, which makes better adhesive, it has an unmatched sewfree fit performance.



Pes Hot Melt Polyester Adhesive Film For Textile Fabric

Description:This product is a thermoplastic adhesive, suitable for a variety of uses on a wide range of materials. It performs an excellent adhesion for textile, polyester, cotton, blended fabric, PVC etc. This adhesive exhibit excellent wash and dry cleaning resistance.



Application:
DS001TS development direction and application is on garment accessories, footwear, handbags, luggage, embroidery, crafts ofadhesive.



Physical performance and using suggestion:


Hot melt adhesive film

Model   MTE12   MTW12   MT13   MT50
Composition EVA EVA EVA EVA
Appearance Transparent Web Transparent Transparent
Gauge 160~180μm 20~50μm 25~250μm 25~250μm
Width 18~1500mm 1600mm 4~1380mm 4~1380mm
Substrate N/A N/A Release paper Release paper
Hand Medium Very soft Medium Medium
Softening point 75(167) 75(167) 80(176) 85(185)
Wash Weak Weak Weak Weak
Low temperature ˃ -30(-22) ˃ -30(-22) ˃ -30(-22) ˃ -30(-22)
High temperature ˂ 60(140) ˂ 55(131) ˂ 60(140) ˂65(149)
Bonding strength ˃ 1.8kgf/25mm ˃ 1.5kgf/25mm ˃ 1kgf/25mm ˃ 1.5kgf/25mm
Suggested bonding conditions 90~110(194~230) 90~110(194~230) 90~110(194~230) 100~120(212~248)
Bonding material
Protective suits / mask nose bridge / non-woven fabrics, textiles, metal foil Mylar / plastic, PET / PP / EVA, glass / leather / wood / paper, etc.
Application
Protective suits

Non-woven fabrics/Textiles

Daily necessities/decorative materials

Automotive interior/electronics
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic.The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage,direct or consequential, arising out of the use, misuse or inability to use the product.


Hot melt adhesive film



Application

Home Textiles

Curtain, table cloth, mattress, etc..

Heat Transfer Printing

Flocking, gilding and pyrography

Electronic Products

Low pressure injection molding products

Interlining

Strong bonding strength, stable performance, resistance washing and dry cleaning. Choice for double dot, paste dot, powder dot.

Automobile Industry

Roof lining, seat, heat insulating system, sound pannel, air filter, sofa cushion, carpet etc..

Filter Material

Air filtration process, fuel filtration system, lamination, active carbon nonwoven, paper, etc..

Art Jewelry

Have a good strength for bonding metal, glass, organic material, plain film and aluminium covers a wide range of application

Shoes Industry

Front upper adhesive, shoes cloth stereotypes, shoes compound, back upper adhesive

Other Industries

Women`s underware, reflective material, conductive cloth, forming cloth, wall cloth, embroidery badges, woven labels etc...




FAQ

1. How about hot melt adhesive film?It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt
point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands ,then recommend you right products to you.

2. Do you accept OEM or ODM?Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know.

3. How do you transport the products?If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way .Of course if you have other better idea about transport, we will accept it.

4. May I have your samples?If you need some sample for reference, please let us know your fully address/ship mode with courier ,and we will arrange sample for your reference.

5. How long is the lead time?Sample lead time:3-7 days Bulk lead time:7-10 days(depends on order quantity)

6. How do I pay for my order?We accept T/T , Paypal .
