Product Details
Place of Origin: china
Brand Name: YH
Certification: CE SGS
Model Number: 10
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-15 day
Payment Terms: T/T
Supply Ability: 10000
Main Raw Material: |
POLYURETHANE |
Classification: |
Hot Melt Adhesives |
Usage: |
Fiber & Garment, Footwear & Leather, Packing |
Ingredient: |
Polyurethane |
Shape: |
Coiled Material |
MOQ: |
100 Square Meter |
Sample Package: |
Paper Box |
Width: |
1-150cm (can Be Customized) |
Product Name: |
TPU Hot Melt Adhesive Film |
Colour: |
Transparent |
Main Raw Material: |
POLYURETHANE |
Classification: |
Hot Melt Adhesives |
Usage: |
Fiber & Garment, Footwear & Leather, Packing |
Ingredient: |
Polyurethane |
Shape: |
Coiled Material |
MOQ: |
100 Square Meter |
Sample Package: |
Paper Box |
Width: |
1-150cm (can Be Customized) |
Product Name: |
TPU Hot Melt Adhesive Film |
Colour: |
Transparent |

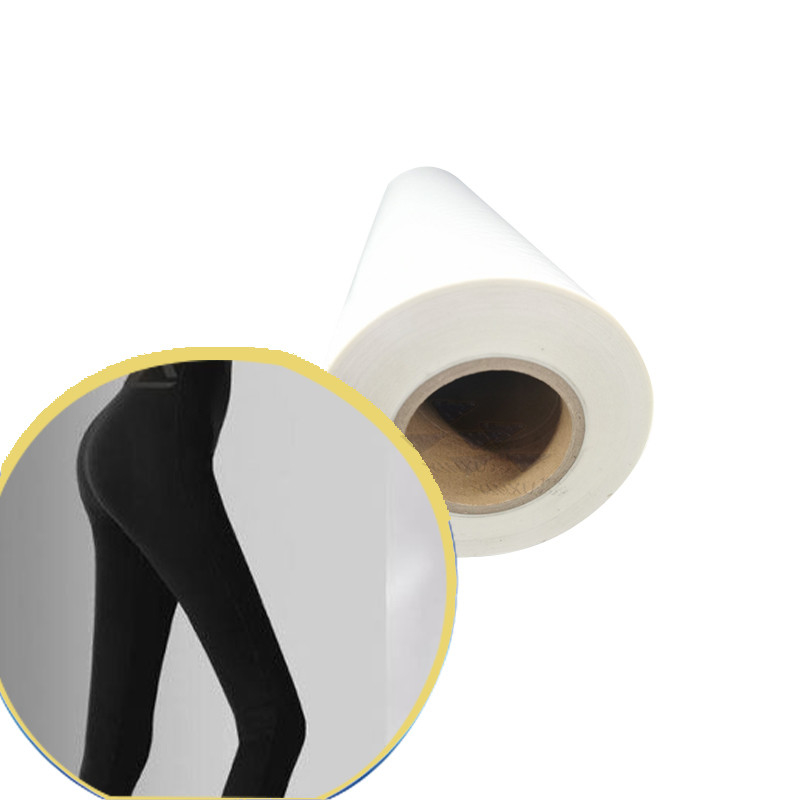

Wholesale Roll Samples Available Jelly Glue Hot Melt Adhesive Film for barbie pants
Characteristics of hot melt adhesive film
Hot Melt Adhesive Film has two parts: the Film part and the Release Paper part on its back. The Film part is not adhesive under the normal temperature. When it reaches its melting point, the Film part has strong adhesion so that the two materials can be adhered to each other permanently and firmly with the technology of heat press by using the hot press machine.
PO Hot Melt Adhesive Film is widely used to glue Embroidery Patches/Badges, Woven Labels to Fabrics; the permanent bonding of Textile Fabrics; the permanent bonding of Metals Materials, such as Aluminum Plates, Metal Plates and Stainless Steel Plates;
TPU Hot Melt Adhesive Film is widely used for the permanent bonding of Seamless Underwear and to glue Elastic Fabrics, such as Cotton Fabrics and Spandex Fabrics.
Product parameters of hot melt adhesive film
TPU Hot melt adhesive film | ||||||||||||
Model | MT8805 | MT8902 | MT8405 | MT8704 | MT4 | MT3 | ||||||
Composition | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Elastomer | ||||||
Appearance | Transparent | Transparent | Transparent | Transparent | Milky white | Semi-transparent | ||||||
Gauge① | 25~250μm | 25~250μm | 25~250μm | 25~250μm | 203~280μm | 100~150μm | ||||||
Width② | 4~1520mm | 4~1520mm | 4~1520mm | 4~1520mm | 6~1500mm | 6~1380mm | ||||||
Substrate③ | Release paper | 离型纸Release paper | 离型纸Release paper | 离型纸Release paper | 离型纸Release paper | 离型纸Release paper | ||||||
Hand | Very soft | 柔软Soft | 柔软Soft | 柔软Soft | 适中Medium | 柔软Soft | ||||||
Softening point | 115℃(239℉) | 110℃(230℉) | 105℃(221℉) | 85℃(185℉) | 90℃(194℉) | 90℃(194℉) | ||||||
Wash | ˂ 60℃(140℉) | ˂ 60℃(140℉) | ˂ 50℃(122℉) | ˂ 40℃(104℉) | ˂ 40℃(104℉) | ˂ 40℃(104℉) | ||||||
Low temperature | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ||||||
High temperature | ˂ 100℃(212℉) | ˂95℃(203℉) | ˂90℃(194℉) | ˂75℃(167℉) | ˂75℃(167℉) | ˂75℃(167℉) | ||||||
Bonding strength④ | ˃ 8kgf/25mm | ˃ 8kgf/25mm | ˃ 7kgf/25mm | ˃ 5.5kgf/25mm | ˃ 5kgf/25mm | ˃ 5kgf/25mm | ||||||
Suggested bonding conditions⑤ | 160~180℃(320~356℉) | 150~170℃(302~338℉) | 150~170℃(302~338℉) | 130~150℃(266~302℉) | 140~160℃(284~320℉) | 140~160℃(284~320℉) | ||||||
Bonding material⑥ | Sewfree underwear/shirts/T-shirts/body-shaping clothes/yoga pants, sewfree pockets, waterproof three-layer belts, multifunctional clothing, leather/PVC, mesh, shoe materials, nylon cloth/lycra cloth/elastic fabric etc. |
|||||||||||
Application | Sewfree garment |
Elastic fabric |
Shoe materials |
Electronic protective cover/fire retardant application |
Body-shaping clothes/yoga pants |
Shirts/T-shirts |
Briture Film Adhesives are hot melt adhesives produced in film form with back paper or without back paper. It can be convenient to either continuous or intermittent processes. It can be widely used for bonding fabrics, paper, polymer material and metal.
Application case display of hot melt adhesive film
Sewfree underwear/shirts/T-shirts/body-shaping clothes/yoga pants, sewfree pockets, waterproof three-layer belts, multifunctional clothing, leather/PVC, mesh, shoe materials, nylon cloth/lycra cloth/elastic fabric etc.
Hot melt adhesive web film is a good product with high bonding ability, which are widely used in many indusrties, such as fabric, leather, metal, plastic, microfiber, non-woven fabric, wooden board, paper, etc.
Here are some features of our hot melt adhesive sheet:
a. High intensity and strong bonding;
b. excellent washing& dry cleaning performance;
c. uneasy to change shape;
d. good breath ability;
e. eco-friendly.
The advantages of the hot melt adhesive web film when compare to traditional glue bonding:
1. Eliminate the complicated process of glue application and do not need the related equipments;
2. Bonding fastly, heating and cooling, stick firmly;
3. The bonding fastness to textiles, leather, fabrics and glass fiber products is better than the glue with the same price;
4. Eco friendly, no harm to the environment and human body;
5. Do not need to worry about glue leakage during the bonding, and thematerials will be clean, tidy and no peculiar smell after bonding;
6. The bonded material will not fall off, wrinkle, or foam after washing and dry cleaning.
About Meitie
M&T Hot Melt Adhesive Technology Co., Ltd. is a professional manufacturer of high elasticity&high sticky undergarment customized TPU film, grid film, High and low temperature film, heat transfer film and hot melt adhesive film, we focus on research and developmentthe for hot-melt adhesives film, polymer film and related products or new materials, establish a close working relationship with a number of domestic research institutions, and continue to introduce new products to speed up the upgrading in order to provide our customers with better, more value products. M&T uses imported equipment and imported raw materials for the production, with the leading domestic production technology and detection technology, guarantee the products under a comprehensive quality tracking management, all the products were certified by SGS and complied with EU ROHS.
"M&T" Hot Melt Adhesive Film widely used in underwear manufacturing, functional clothing, electronic products protective cover, uniform manufacturing, apparel decorative materials, shoe materials and automotive manufacturing fields etc., M&T adheres to the "Customer first, Forge Ahead" business philosophy, adhere to the principle with "Quality First, Client Supreme", we insist the high-quality product, preferential prices and fast&timely shipment to obtain the long-term cooperation from customers.
FAQ
Q: Are you factory or a trading company ?
A: We are a factory. We have 10 production lines for hot melt adhesive films and web, including extrusion coating, T-DIE etc.
Q: What’s your main products?
A: Our main products include “HOT MELT ADHESIVE FILM”, “HOT MELT ADHEISVE WEB”, “HOT MELT ADHESIVE POWDER” etc. And adhesive types
includes Co-PA, Co-PES, TPU, PO/EAA, and EVA.
Q: Do you accept OEM or ODM?
A: Yes ,we accept OEM and ODM, we are professional in heat transfer material manufacturer ,accumulated experience in R&D and
manufacturing.
Q: May I have your samples?
A: If you need some sample for your reference, do feel free to let us know your fully address and the courier express account.
Q: What is your payment method?
A: We accept T/T, L/C, Western Union. You can also pay through Alibaba Trade Assurance.
Q: How long is the delivery time?
A: For sample 1-3 days
For bulk order 7-10 days (depends on order quantity)
Q: What is hot melt adhesive film?
A: The structure is two layers including hot melt adhesive film and release paper. The adhesive film is solid in room temperature
and would be melt and activated adhesion when you heat it. You can bond many substrates such as cloth, leather, mesh, metal, wood,
plastic etc. Hot melt adhesive film are widely used in applications of shoes, garment, automobile, household, furniture, hardware
tools, underwear & socks and so on.
