Product Details
Place of Origin: china
Brand Name: YH
Certification: CE SGS
Model Number: 10
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-15 day
Payment Terms: T/T
Supply Ability: 10000
Usage: |
Fiber & Garment, Footwear & Leather |
Product Name: |
TPU Hot Melt Adhesive Film |
Colour: |
MILKY WHITE |
Characteristic: |
Strong AdhesionElastic\Elastic |
Thickness: |
0.06mm (can Be Customized) |
Ingredient: |
Polyurethane |
Shape: |
Coiled Material |
MOQ: |
100㎡ |
Sample Package: |
Paper Box |
Width: |
1-150cm(can Be Customized) |
Usage: |
Fiber & Garment, Footwear & Leather |
Product Name: |
TPU Hot Melt Adhesive Film |
Colour: |
MILKY WHITE |
Characteristic: |
Strong AdhesionElastic\Elastic |
Thickness: |
0.06mm (can Be Customized) |
Ingredient: |
Polyurethane |
Shape: |
Coiled Material |
MOQ: |
100㎡ |
Sample Package: |
Paper Box |
Width: |
1-150cm(can Be Customized) |

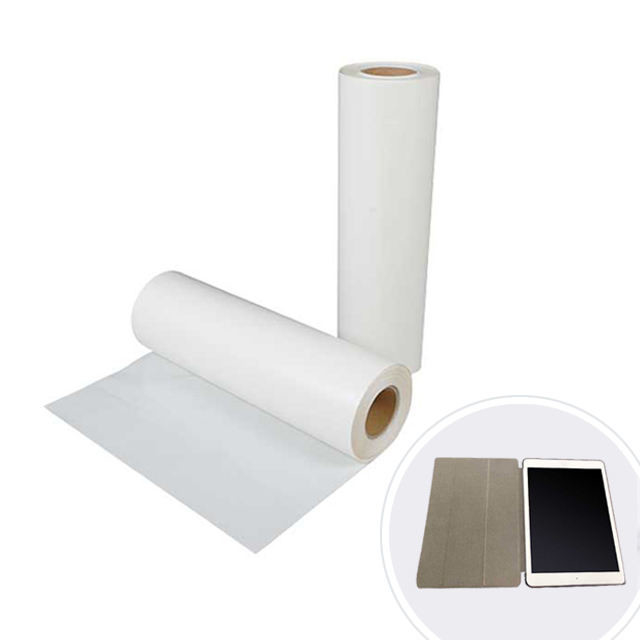

Wholesale Hotmelt Adhesive Tpu Hot Melt Adhesive Paper Film For Tablet Pc Phone Protective Cover
TPU hot melt film parameters
| TPUHot melt adhesive film | ||||||||||||
| Model | MT8805 | MT8902 | MT8405 | MT8704 | MT4 | MT3 | ||||||
| Composition | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Elastomer | ||||||
| Appearance | Transparent | Transparent | Transparent | Transparent | Milky white | Semi-transparent | ||||||
| Gauge① | 25~250μm | 25~250μm | 25~250μm | 25~250μm | 203~280μm | 100~150μm | ||||||
| Width② | 4~1520mm | 4~1520mm | 4~1520mm | 4~1520mm | 6~1500mm | 6~1380mm | ||||||
| Substrate③ | Release paper | Release paper | Release paper | Release paper | Release paper | Release paper | ||||||
| Hand | Very soft | Soft | Soft | Soft | Medium | Soft | ||||||
| Softening point | 115℃(239℉) | 110℃(230℉) | 105℃(221℉) | 85℃(185℉) | 90℃(194℉) | 90℃(194℉) | ||||||
| Wash | ˂ 60℃(140℉) | ˂ 60℃(140℉) | ˂ 50℃(122℉) | ˂ 40℃(104℉) | ˂ 40℃(104℉) | ˂ 40℃(104℉) | ||||||
| Low temperature | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ˃ -30℃(-22℉) | ||||||
| High temperature | ˂ 100℃(212℉) | ˂95℃(203℉) | ˂90℃(194℉) | ˂75℃(167℉) | ˂75℃(167℉) | ˂75℃(167℉) | ||||||
| Bonding strength④ | ˃ 8kgf/25mm | ˃ 8kgf/25mm | ˃ 7kgf/25mm | ˃ 5.5kgf/25mm | ˃ 5kgf/25mm | ˃ 5kgf/25mm | ||||||
| 建议使用条件Suggested bonding conditions⑤ | 160~180℃(320~356℉) | 150~170℃(302~338℉) | 150~170℃(302~338℉) | 130~150℃(266~302℉) | 140~160℃(284~320℉) | 140~160℃(284~320℉) | ||||||
| Bonding material⑥ | Sewfree underwear/shirts/T-shirts/body-shaping clothes/yoga pants, sewfree pockets, waterproof three-layer belts, multifunctional clothing, leather/PVC, mesh, shoe materials, nylon cloth/lycra cloth/elastic fabric etc. |
|||||||||||
| Application | Sewfree garment |
Elastic fabric |
Shoe materials |
Electronic protective cover/fire retardant application |
Body-shaping clothes/yoga pants |
Shirts/T-shirts |
||||||
1. The film is made of PE material
2. Single side glue, can be positive glue, can reverse glue
3. The glue is environmentally friendly water-soluble glue,The material and glue are environmentally friendly and self-degradable
4. Method of use:stick on the surface of the article, can be torn off at any time, waterproof, scratch-proof, dustproof.
5. Storage life: maximum 6 months under the condition of sunlight, indoor storage can be up to 2 years
6. Heat resistance:<80℃.
7. The adhesive surface is easy to stick, easy to peel off, high adhesive products will not leave residual glue when peeling
Application Exhibition of TPU hot melt adhesive film products
About meitie manufacturer
M&T Hot Melt Adhesive Technology Co., Ltd. is a professional manufacturer of high elasticity&high sticky undergarment customized TPU film, grid film, High and low temperature film, heat transfer film and hot melt adhesive film, we focus on research and developmentthe for hot-melt adhesives film, polymer film and related products or new materials, establish a close working relationship with a number of domestic research institutions, and continue to introduce new products to speed up the upgrading in order to provide our customers with better, more value products. M&T uses imported equipment and imported raw materials for the production, with the leading domestic production technology and detection technology, guarantee the products under a comprehensive quality tracking management, all the products were certified by SGS and complied with EU ROHS.
"M&T" Hot Melt Adhesive Film widely used in underwear manufacturing, functional clothing, electronic products protective cover, uniform manufacturing, apparel decorative materials, shoe materials and automotive manufacturing fields etc., M&T adheres to the "Customer first, Forge Ahead" business philosophy, adhere to the principle with "Quality First, Client Supreme", we insist the high-quality product, preferential prices and fast&timely shipment to obtain the long-term cooperation from customers.
Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
FAQ
Q: Are you a factory or trading company?
A: We are a professional TPU
Q: What is your main products?
A: Our main products is TPU films.
Q: Can we get a sample?
A: Yes, we can offer a free sample within 1 kg.
Q: What is payment terms you do?
A: We accept T/T.
Q: How long to deliver the products?
A: The exact delivery date is according to your order quantity. Usually within 7-15 working days after receiving the deposit.
Q: How about MOQ & POD?
A: The minimum order quantity is 500kg, place of delivery will be ningbo, shanghai.
Q: Do you accept a customized service?
A: Yes, we do accept customized colors/size/pattern
Q: Do you accept OEM or ODM?
A: Yes, we do accept OEM and ODM, we are a professional TPU film manufacturer, we could meet your different requirements.
