Home > products > Hot Melt Adhesive Films > Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric

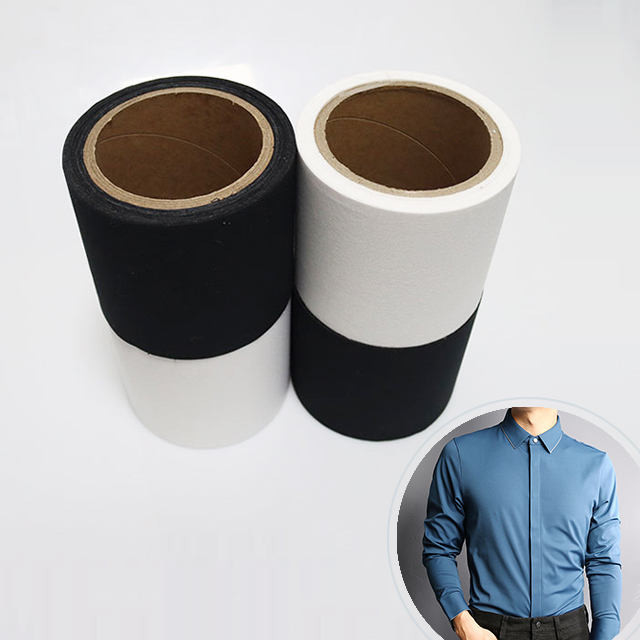

Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric

Product Details

Place of Origin: china

Brand Name: YH

Certification: CE SGS

Model Number: 10

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Negotiable

Packaging Details: carton

Delivery Time: 5-15 day

Payment Terms: T/T

Supply Ability: 10000

Get Best Price
High Light:

SGS Hot Melt Adhesive Film

,

0.15mm Hot Melt Adhesive Film

,

Interlining TPU Hot Melt Adhesive Films

Main Raw Material:
TPU
Product Name:
Interlining + TPU Film
Colour:
Customization
Characteristic:
Strong Adhesion
Thickness:
0.15mm
Classification:
Hot Melt Adhesives
Usage:
Fiber & Garment, Footwear & Leather
Shape:
Coiled Material
MOQ:
100 Square Meter
Sample Package:
Paper Box
Main Raw Material:
TPU
Product Name:
Interlining + TPU Film
Colour:
Customization
Characteristic:
Strong Adhesion
Thickness:
0.15mm
Classification:
Hot Melt Adhesives
Usage:
Fiber & Garment, Footwear & Leather
Shape:
Coiled Material
MOQ:
100 Square Meter
Sample Package:
Paper Box
Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric

The Fine Quality Tpu Film Shirt Hot Melt Adhesive Film For Tpu Thermal Laminating Film Fabric



Product display and characteristics of hot melt chips
This hot melt slice is one of the hot melt adhesive webs. It can realize the characteristics of the membrane, and can meet the special requirements of high temperature resistance, low temperature resistance, water washing resistance, dry cleaning resistance and heat insulation. This hot-melt slice, also known as hot-melt double-sided adhesive lining, is specially used for the composite of shirts, washable, easy to bond, and easy to operate.



T-shirt hot melt adhesive film

TPUHot melt adhesive film

Model   MT8805   MT8902   MT8405   MT8704   MT4   MT3
Composition Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane Elastomer
Appearance Transparent Transparent Transparent Transparent Milky white Semi-transparent
Gauge 25~250μm 25~250μm 25~250μm 25~250μm 203~280μm 100~150μm
Width 4~1520mm 4~1520mm 4~1520mm 4~1520mm 6~1500mm 6~1380mm
Substrate Release paper Release paper Release paper Release paper Release paper Release paper
Hand Very soft Soft Soft Soft Medium Soft
Softening point 115(239) 110(230) 105(221) 85(185) 90(194) 90(194)
Wash ˂ 60(140) ˂ 60(140) ˂ 50(122) ˂ 40(104) ˂ 40(104) ˂ 40(104)
Low temperature ˃ -30(-22) ˃ -30(-22) ˃ -30(-22) ˃ -30(-22) ˃ -30(-22) ˃ -30(-22)
High temperature ˂ 100(212) ˂95(203) ˂90(194) ˂75(167) ˂75(167) ˂75(167)
Bonding strength ˃ 8kgf/25mm ˃ 8kgf/25mm ˃ 7kgf/25mm ˃ 5.5kgf/25mm ˃ 5kgf/25mm ˃ 5kgf/25mm
Suggested bonding conditions 160~180(320~356) 150~170(302~338) 150~170(302~338) 130~150(266~302) 140~160(284~320) 140~160(284~320)
Bonding material
Sewfree underwear/shirts/T-shirts/body-shaping clothes/yoga pants, sewfree pockets, waterproof three-layer belts, multifunctional clothing, leather/PVC, mesh, shoe materials, nylon cloth/lycra cloth/elastic fabric etc.
Application
Sewfree garment

Elastic fabric

Shoe materials

Electronic protective cover/fire retardant application

Body-shaping clothes/yoga pants

Shirts/T-shirts

Product application range

Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric 0

Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric 1

Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric 1Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric 3Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric 4Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric 5Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric 4Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric 7
Introduction of hot melt adhesive mesh film for shirts
The hot-melt adhesive mesh film for shirts generally has a large number of slices, that is, a small width and a relatively narrow hot-melt adhesive mesh film, which is also called a hot-melt double-sided adhesive lining.
This hot melt adhesive film is specially designed for shirt compounding. It is usually made of PA material. It can be used for the combination of shirt collar, pocket, embroidered badge, cuff and other places. The width can be selected, 1cm, 2cm, A variety of 3cm specifications are available, and the quantity can be customized.



Hot melt adhesive film packaging



Shirt TPU Hot Melt Adhesive Film For Thermal Laminating Fabric 8



Polyurethane Tpu Hot Melt Adhesive Film for Textile Fabric
The material of Tpu Hot Melt Adhesive Film for Textile Fabric is Polyurethane, it has differnt thickness,such as 0.05mm, 0.08mm, 0.10mm, 0.15mm and 0.18mm, and it has different width which can from 10mm to 1524mm



Characteristics of hot melt adhesive film



1: Using heat transfer vinyl for diversified design, DIY creativity, beautiful and fashionable

2: Promote beautiful and soft clothing cuts, replace the traditional sewing process

3: Environmentally friendly, non-toxic and odorless, in line with the concept of sustainable environmental protection

4: Easy processing at low temperature, high bonding strength, saving labor cost and improving production efficiency



Application range of hot melt film:



The hot-melt composite film of high elastic underwear not only achieves perfect adhesion and anti yellowing effect, but also is comfortable and highly elastic. The high elastic TPU hot melt adhesive film produced by our company has good bonding strength on Lycra, modal, spandex, cotton ammonia blended fabric and other fabrics. With excellent washability, it is widely used in the fields of cup sealing, swimsuit, bra belt and so on..
